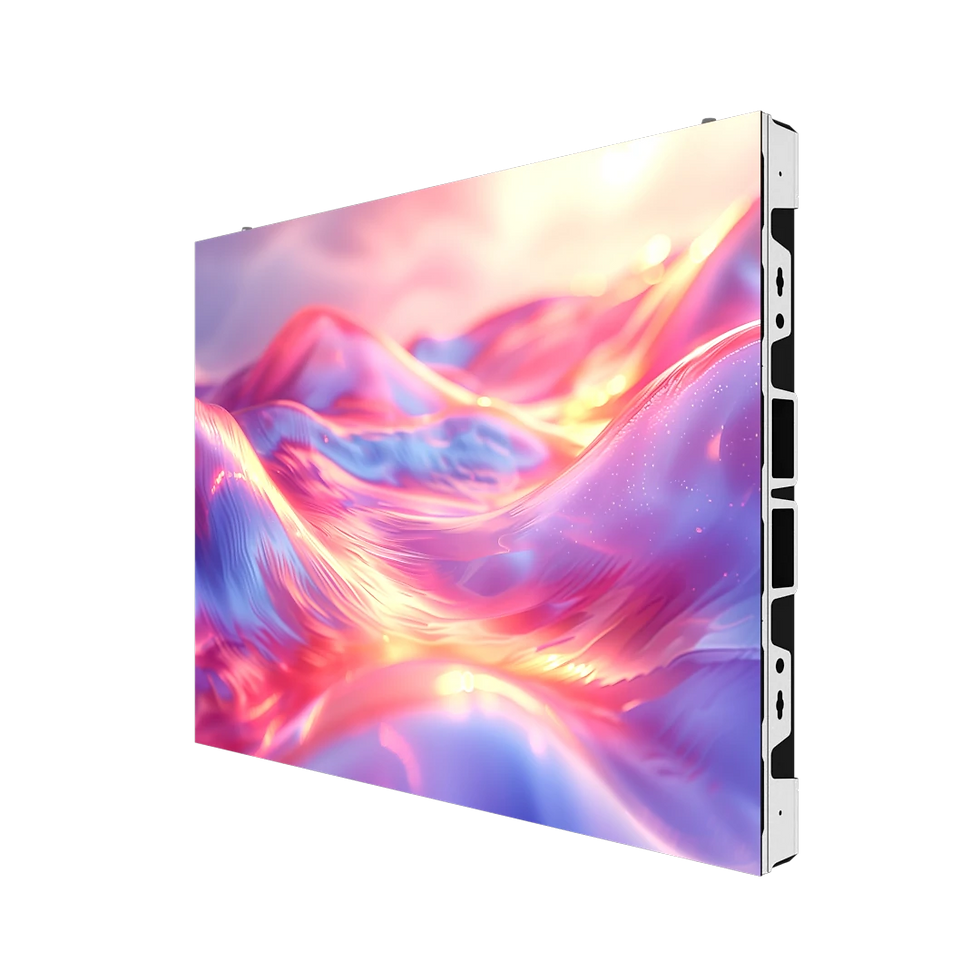

FIW Series LED Video Wall screen with bright image

FIW Series Panels

When your goal is a sleek, flush mounted LED wall, the FIW Series is the answer. Its low-profile design, front-service access, and premium image quality make it ideal for sanctuaries, lobbies, conference rooms, and digital signage.

ARCHITECTURAL PANELS

Why Choose the FIW Series

The FIW Series is our architectural display solution, designed for clean, flush wall installations where appearance matters just as much as performance. The FIW series mounts directly to the wall and is fully serviceable from the front. The result is a sleek, low-profile installation that delivers stunning visuals while extending only a few inches from the wall.

​

Available in fine pixel pitches from P1.2 to P2.5, the FIW Series is ideal for churches, conference rooms, lobbies, classrooms, and premium commercial spaces where a polished, built-in appearance is the goal.

​

Key Features

  • Flush architectural installation with an ultra-low-profile design

  • Complete front-service maintenance—no rear access required

  • Mounts directly to finished walls for a clean, built-in appearance

  • Ultra-fine pixel pitches from P1.2 to P2.5

  • ETL certified for U.S. and Canadian safety standards

  • Cable-free cabinet design for a seamless finish

  • Supports stunning 2K and 4K video wall configurations

  • Available with durable SMD or GOB LED technology

  • Ideal for churches, conference rooms, lobbies, classrooms, and digital signage

Stunning Visual Performance

With brightness up to 1,000 nits, a 16-bit grayscale, and refresh rates up to 3,840Hz, the FIW Series delivers vibrant colors, smooth motion, and exceptional clarity. Whether your audience is in the front row or watching online, your content looks crisp, natural, and professional.


Flush Mount. Front Service.

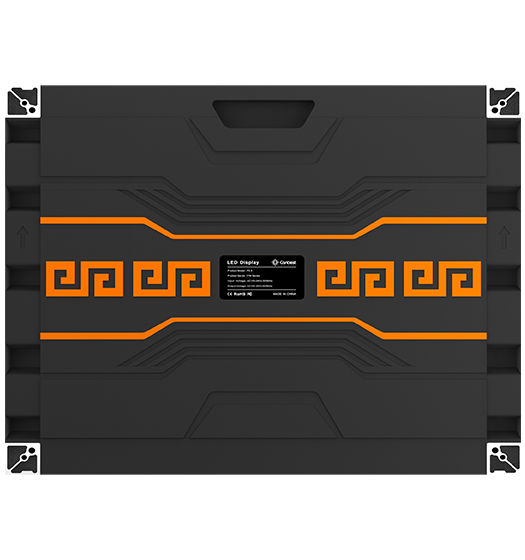

The FIW Series mounts just inches from the wall while keeping every critical component accessible from the front. That means a cleaner installation and easier maintenance.

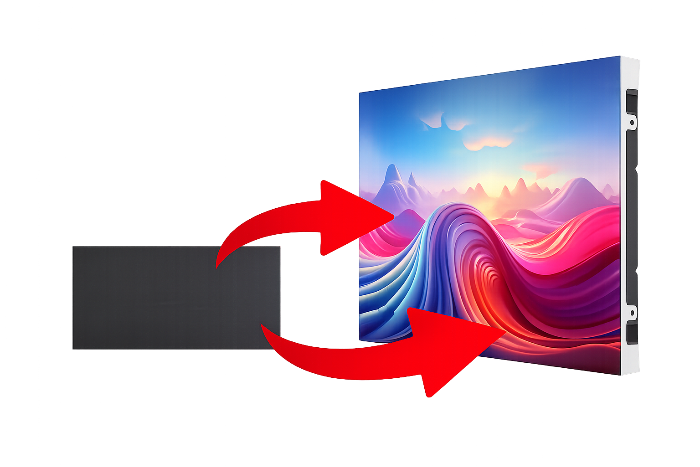

FIW Series LED Video Wall front service module change

Get Creative

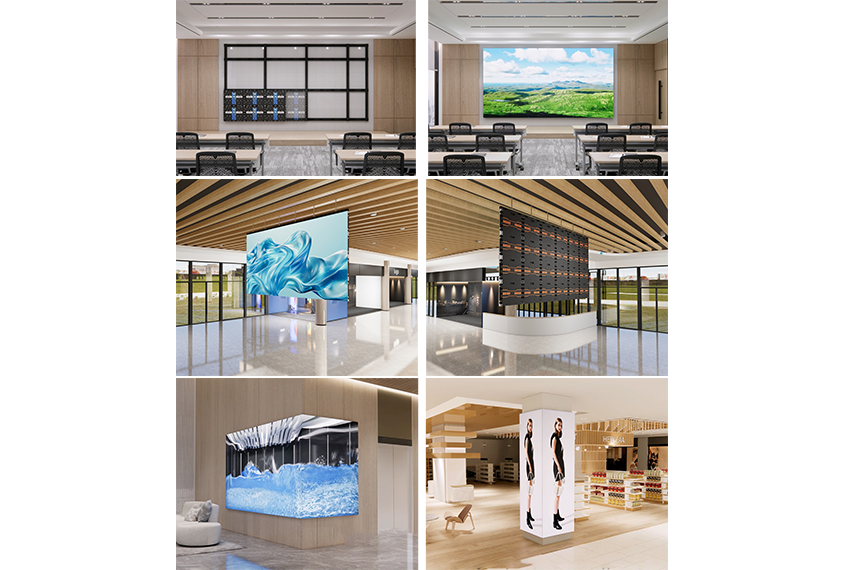

Mount it directly to the wall, suspend it from the ceiling, create clean 90° corners, or integrate it into custom architectural features. The FIW Series gives designers and installers the flexibility to build bold displays that complement the space.


  • PIXEL PITCH: 1.25mm

    PIXEL CONFIGURATION: 3 in 1 SMD/GOB

    MODULE PIXEL (H x W): 256x128dots

    CABINET PIXEL (H X W): 512x384dots

    BRIGHTNESS: 800nits

    REFRESH RATE: 3840Hz

    CABINET SIZE: 640x480mm (25.19x18.89 inch)

    CABINET WEIGHT: 7.4Kgs (16.31 lbs)

    ACCESSIBILITY: Front Access

    IP RATING: IP30

    CONTRAST RATIO: 5000:1

    WORKING TEMPERATURE: -20℃~+40℃ (-4°F to 104°F)

  • PIXEL PITCH: 1.538mm

    PIXEL CONFIGURATION: 3 in 1 SMD/GOB

    MODULE PIXEL (H x W): 208x104dots

    CABINET PIXEL (H X W): 416x312dots

    BRIGHTNESS: 800nits

    REFRESH RATE: 3840Hz

    CABINET SIZE: 640x480mm (25.19x18.89 inch)

    CABINET WEIGHT: 7.4Kgs (16.31 lbs)

    ACCESSIBILITY: Front Access

    IP RATING: IP30

    CONTRAST RATIO: 5000:1

    WORKING TEMPERATURE: -20℃~+40℃ (-4°F to 104°F)

  • PIXEL PITCH: 1.86mm

    PIXEL CONFIGURATION: 3 in 1 SMD/GOB

    MODULE PIXEL (H x W): 172x86dots

    CABINET PIXEL (H X W): 344x258dots

    BRIGHTNESS: 800nits

    REFRESH RATE: 3840Hz

    CABINET SIZE: 640x480mm (25.19x18.89 inch)

    CABINET WEIGHT: 7.4Kgs (16.31 lbs)

    ACCESSIBILITY: Front Access

    IP RATING: IP30

    CONTRAST RATIO: 5000:1

    WORKING TEMPERATURE: -20℃~+40℃ (-4°F to 104°F)

  • PIXEL PITCH: 2.0mm

    PIXEL CONFIGURATION: 3 in 1 SMD/GOB

    MODULE PIXEL (H x W): 160x80dots

    CABINET PIXEL (H X W): 320x240dots

    BRIGHTNESS: 800nits

    REFRESH RATE: 3840Hz

    CABINET SIZE: 640x480mm (25.19x18.89 inch)

    CABINET WEIGHT: 7.4Kgs (16.31 lbs)

    ACCESSIBILITY: Front Access

    IP RATING: IP30

    CONTRAST RATIO: 5000:1

    WORKING TEMPERATURE: -20℃~+40℃ (-4°F to 104°F)

  • PIXEL PITCH: 2.5mm

    PIXEL CONFIGURATION: 3 in 1 SMD/GOB

    MODULE PIXEL (H x W): 128x64dots

    CABINET PIXEL (H X W): 256x192dots

    BRIGHTNESS: 1000nits

    REFRESH RATE: 3840Hz

    CABINET SIZE: 640x480mm (25.19x18.89 inch)

    CABINET WEIGHT: 7.4Kgs (16.31 lbs)

    ACCESSIBILITY: Front Access

    IP RATING: IP30

    CONTRAST RATIO: 5000:1

    WORKING TEMPERATURE: -20℃~+40℃ (-4°F to 104°F)

7680hz

REFRESH RATE

1000nits

BRIGHTNESS

281 Trillion

COLOR CAPABILITY

140° / 140°

VIEWING ANGLE

5000:1

CONTRAST RATIO

SEE IT IN ACTION

FIW Series Projects

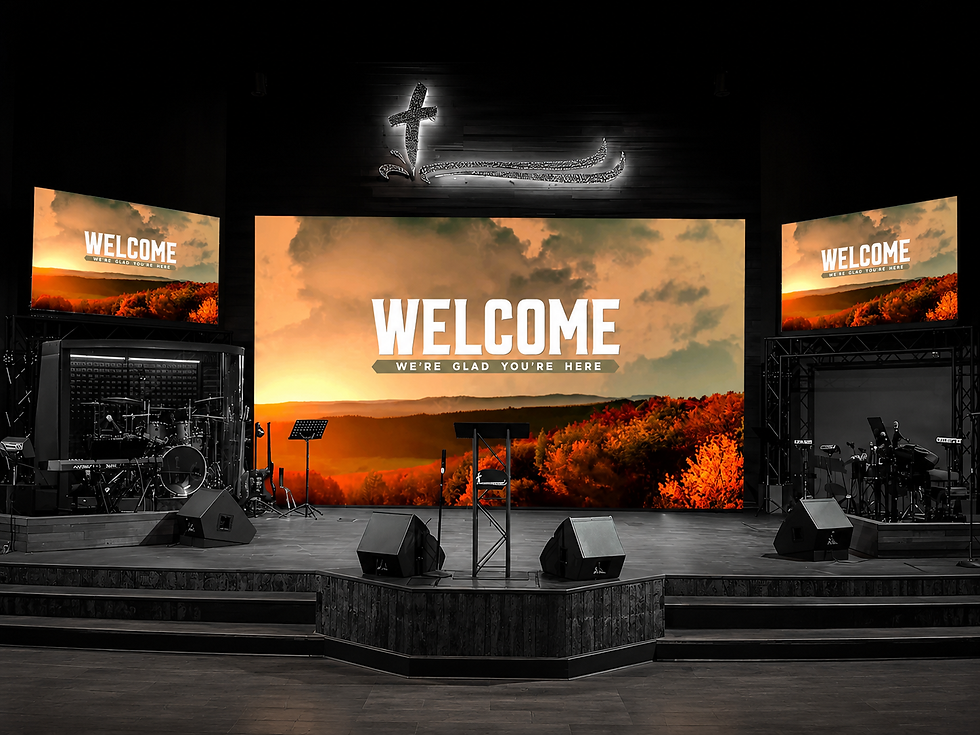

FIW Series LED Video Wall installed at a church with large center screen and two side screens

FIW Series P2.5

  • Center - 7m x 4m (22.97' x 13.12')

  • Sides - 2.5m x 1.5m (8.2' x 4.92')

FIW Series P1.8

  • 11.5m x 2.88m (37.73' x 9.45')

  • 108 Panels

FIW Series LED Video Wall wide screen flush wall mounted

Other SOLUTIONS

Explore More

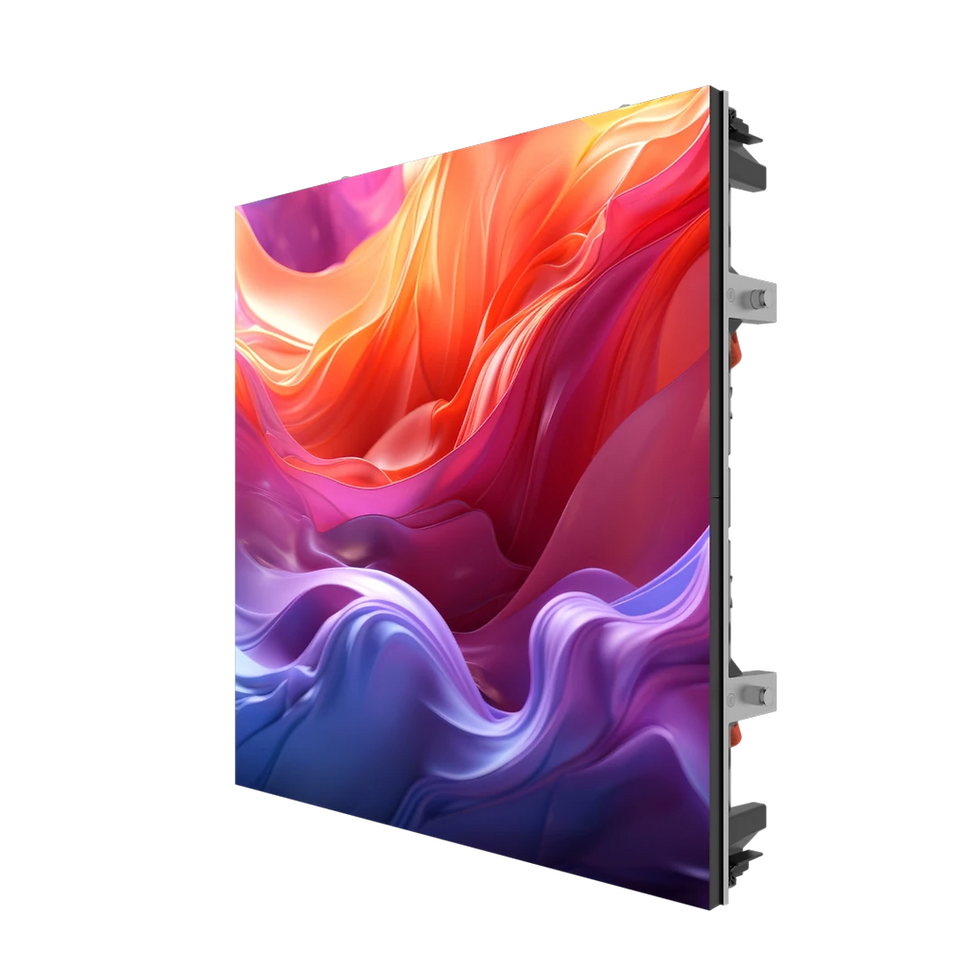

xs-series-front-profile

XS MODULAR SERIES

One panel. Endless possibilities. The modular workhorse of our lineup, the XS Series builds seamless LED walls that can be ground stacked, flown, expanded, and reconfigured whenever your needs change.

Go Modular

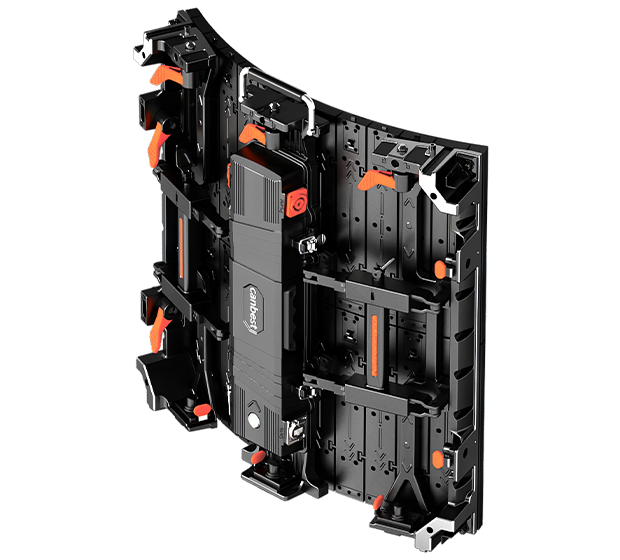

XS-C CURVED SERIES

Take your LED wall beyond flat. The XS-C Series creates smooth curves, dramatic corners, and even complete circular columns—perfect for churches, lobbies, and unique architectural spaces.

Go Curved

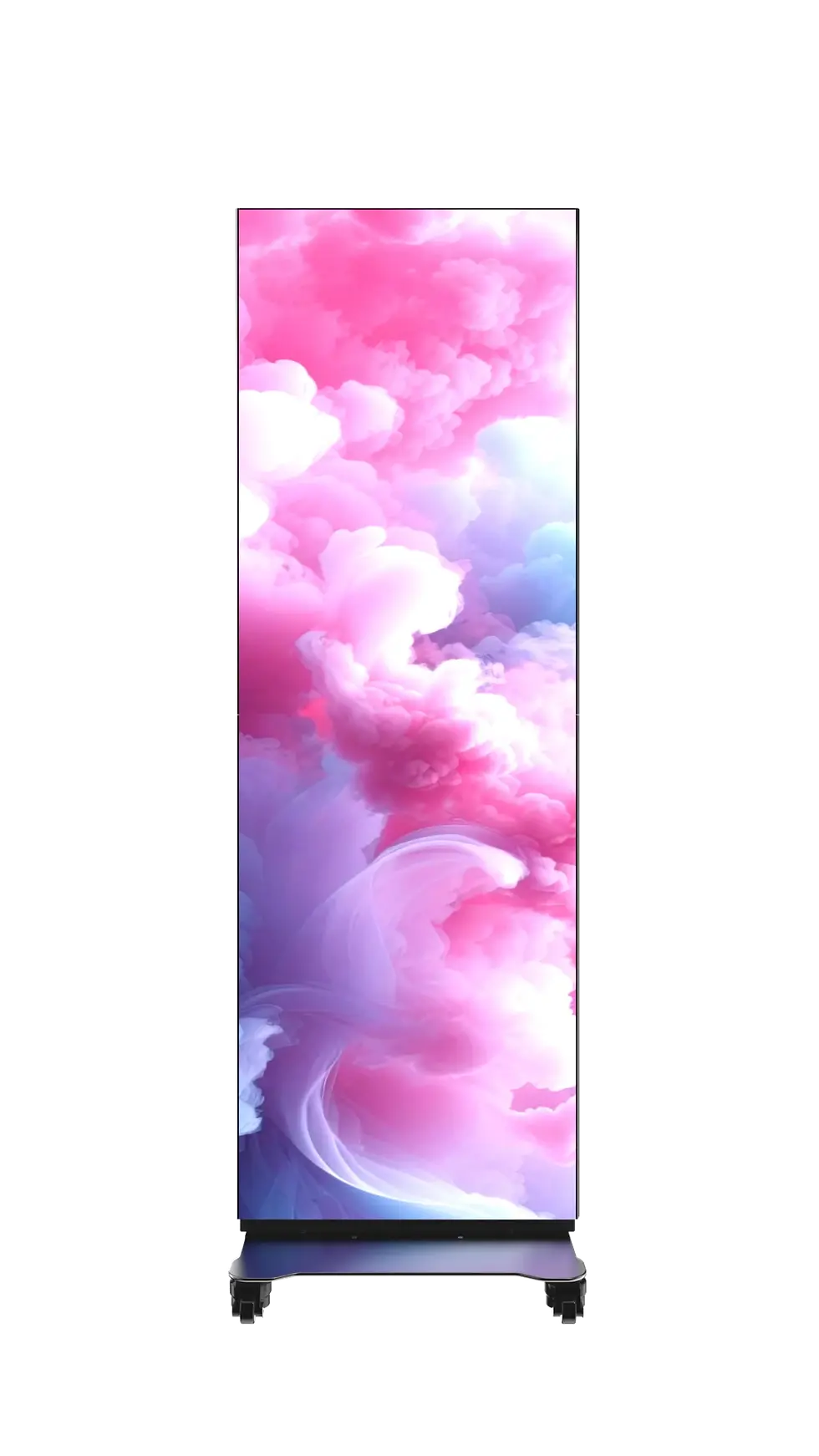

cj-pro-v2-front-unfolded
