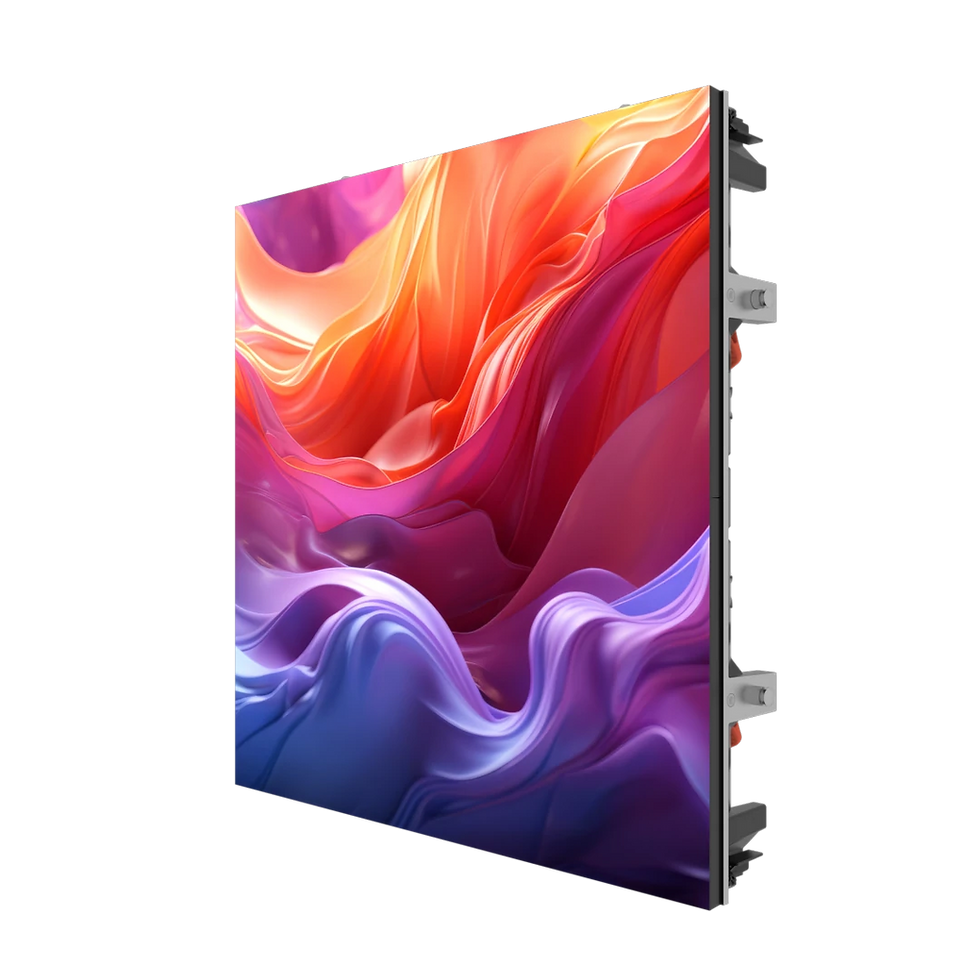

XS Series led video wall panel front screen

XS Series Panels

Professional-grade LED panels designed for permanent installations, portable events, and everything in between.

PORTABLE PANELS

Why Choose the XS Series

Built for churches, live events, and production companies, the XS Series delivers the flexibility and reliability needed for demanding environments. Whether you’re creating a worship backdrop, conference stage, or touring production, these lightweight modular panels are designed to look exceptional and perform with confidence.


One of the XS Series’ standout features is its intelligent backup power technology, helping keep your display running even if a power supply fails. Combined with multiple cabinet sizes, fine pixel pitch options, and a scalable design, it’s a solution that grows from small sanctuaries to large auditoriums.


Key Features

  • Intelligent backup power for added reliability

  • Modular design for fast setup and flexible layouts

  • Available in 500×500 mm and 500×1000 mm cabinets

  • Pixel pitch options from P1.9 to P3.9

  • Ideal for churches, conferences, touring productions, and live events

  • Scalable from portable stages to large-format video walls

Stunning Visual Performance

With brightness up to 1,000 nits, a 16-bit grayscale, and refresh rates up to 7,680Hz, the XS Series delivers vibrant colors, smooth motion, and exceptional clarity. Whether your audience is in the front row or watching online, your content looks crisp, natural, and professional.

Perfect-and-Stunning Visuals-with-7680Hz

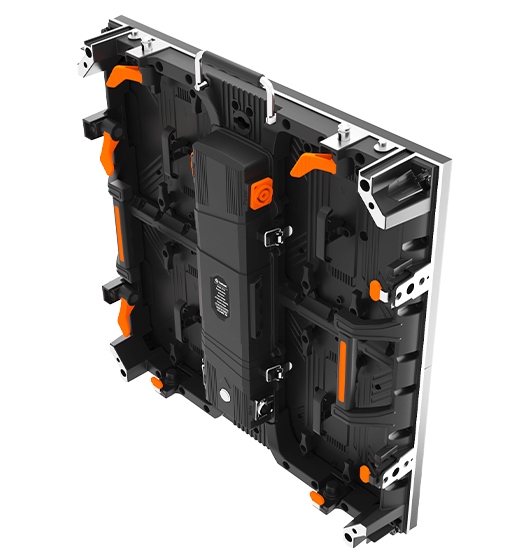

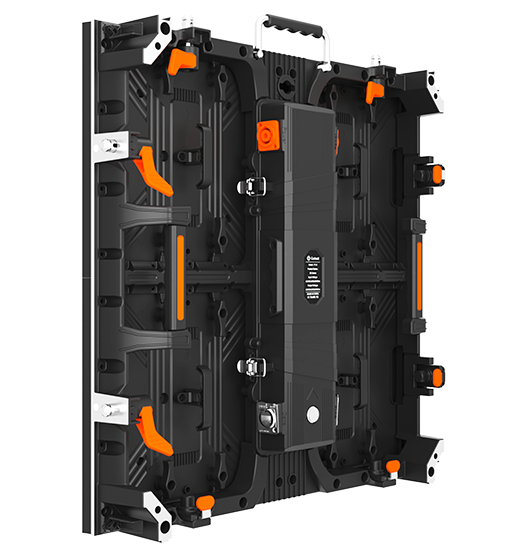

Built for Easy Service & Maintenance

A modular cabinet design makes maintenance quick and straightforward. Front and rear service access, interchangeable modules, and a removable power box help minimize downtime, simplify repairs, and keep your video wall performing at its best.

Modular-Design-Enables-Hassle-Free-Maintenance

Power Share Technology (PST)

Power Share Technology helps keep your LED wall running even if a single power supply fails. Instead of a dark panel interrupting your display, neighboring cabinets automatically share power, allowing the screen to continue operating until maintenance can be performed.

For churches, conferences, and live events, this added layer of redundancy provides greater reliability when every presentation and every service matters.


  • PIXEL PITCH: 1.9mm

    PIXEL CONFIGURATION: 3 in 1 SMD/GOB

    MODULE PIXEL (H x W): 128x128dots

    CABINET PIXEL (H X W): 256x256dots

    BRIGHTNESS: 800nits

    REFRESH RATE: 7680Hz

    CABINET SIZE: 500x500mm (19.69x19.69inch)

    CABINET WEIGHT: 7.1Kgs (15.65 lbs)

    ACCESSIBILITY: Front Access

    IP RATING: IP30

    CONTRAST RATIO: 5000:1

    WORKING TEMPERATURE: -20℃~+40℃ (-4°F to 104°F)

  • PIXEL PITCH: 2.604mm

    PIXEL CONFIGURATION: 3 in 1 SMD

    MODULE PIXEL (H x W): 96x96dots

    CABINET PIXEL ( H X W): 192x192dots | 192x384dots

    BRIGHTNESS: 1000nits

    REFRESH RATE: 7680Hz

    CABINET SIZE Single: 500x500mm ( 19.69x19.69inch)

    CABINET SIZE Double: 500x1000mm (19.69x39.38inch)

    CABINET WEIGHT: 7.1Kgs (15.65 lbs) | 13Kgs (28.66 lbs)

    ACCESSIBILITY: Front Access

    IP RATING: IP30

    CONTRAST RATIO: 5000:1

    WORKING TEMPERATURE: -20℃~+40℃ (-4°F to 104°F)

  • PIXEL PITCH: 2.604mm

    PIXEL CONFIGURATION: 3 in 1 SMD

    MODULE PIXEL (H x W): 96x96dots

    CABINET PIXEL ( H X W): 192x192dots | 192x384dots

    BRIGHTNESS: 4500nits

    REFRESH RATE: 3840Hz

    CABINET SIZE Single: 500x500mm ( 19.69x19.69inch)

    CABINET SIZE Double: 500x1000mm (19.69x39.38inch)

    CABINET WEIGHT: 7.1Kgs (15.65 lbs) | 13Kgs (28.66 lbs)

    ACCESSIBILITY: Rear Access

    IP RATING: IP65

    CONTRAST RATIO: 5000:1

    WORKING TEMPERATURE: -20℃~+40℃ (-4°F to 104°F)

  • PIXEL PITCH: 3.91mm

    PIXEL CONFIGURATION: 3 in 1 SMD

    MODULE PIXEL (H x W): 64x64dots

    CABINET PIXEL ( H X W): 128x128dots | 128x256dots

    BRIGHTNESS: 5000nits

    REFRESH RATE: 3840Hz

    CABINET SIZE Single: 500x500mm ( 19.69x19.69inch)

    CABINET SIZE Double: 500x1000mm (19.69x39.38inch)

    CABINET WEIGHT: 7.1Kgs (15.65 lbs) | 13Kgs (28.66 lbs)

    ACCESSIBILITY: Rear Access

    IP RATING: IP65

    CONTRAST RATIO: 5000:1

    WORKING TEMPERATURE: -20℃~+40℃ (-4°F to 104°F)

7680hz

REFRESH RATE

1000nits

BRIGHTNESS

281 Trillion

COLOR CAPABILITY

140° / 140°

VIEWING ANGLE

5000:1

CONTRAST RATIO

SEE IT IN ACTION

XS Series Projects

XS Series LED Video Wall setup on a church stage with bold visual background

XS P2.6 Indoor

  • 8m x 3m (26.25' x 9.84')

  • 96 x 500x500 Panels

XS P3.9 Indoor/Outdoor

  • 5m x 3m (16.4' x 9.84')

  • 60 x 500x500 Panels

XS Series LED Video Wall setup with outdoor rated panels in a commercial building space
