XS-C Series Panels

Built on the proven XS platform, the XS-C Series adds true curved panels to the family. While the standard XS panels can create gentle angles, the XS-C Series is designed specifically for smooth, continuous curves that make a dramatic visual statement.

PORTABLE PANELS

Why Choose the XS-C Series

The XS-C Series takes everything that makes the XS Series exceptional and adds true curved panel technology. Designed for churches, live events, and production companies, it creates smooth arcs, sweeping curves, circles, waves, and custom display shapes that simply aren’t possible with traditional flat LED panels. Wrap existing columns, create eye-catching architectural features, or transform an ordinary support pole into a stunning digital centerpiece.

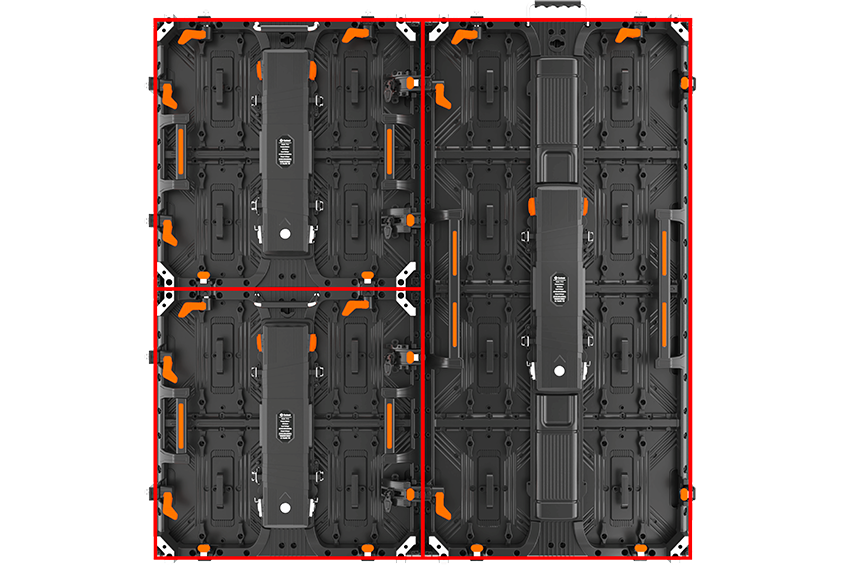

Best of all, the XS-C Series is fully compatible with the XS Series, allowing curved and flat panels to connect seamlessly in the same video wall. Build dramatic center sections, wrap stages, or combine flat and curved displays to bring your vision to life.

Key Features

True flexible panel design for smooth, continuous curves
Fully compatible with standard XS Series panels
Create circles, columns, arcs, waves, S-curves, and custom shapes
Wrap existing structural columns with vibrant digital displays
Intelligent backup power technology for added reliability
Lightweight die-cast aluminum cabinet construction
Available in P1.9 and P2.6 pixel pitches
Eight panels form a complete 360° circle.

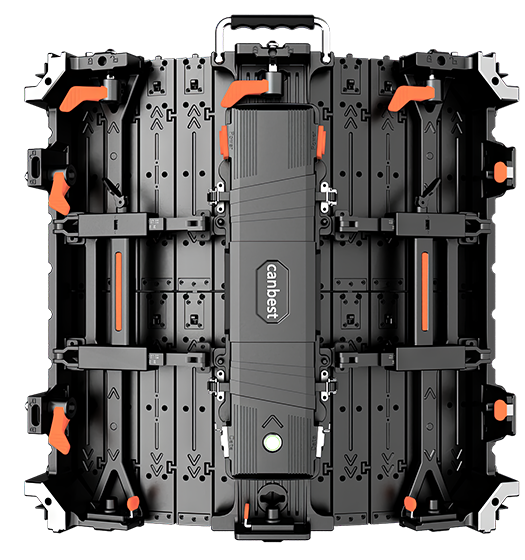

XS-Curved LED Video Wall Panel back right view

Stunning Visual Performance

With brightness up to 1,000 nits, a 16-bit grayscale, and refresh rates up to 7,680Hz, the XS Series delivers vibrant colors, smooth motion, and exceptional clarity. Whether your audience is in the front row or watching online, your content looks crisp, natural, and professional.

Built for Easy Service & Maintenance

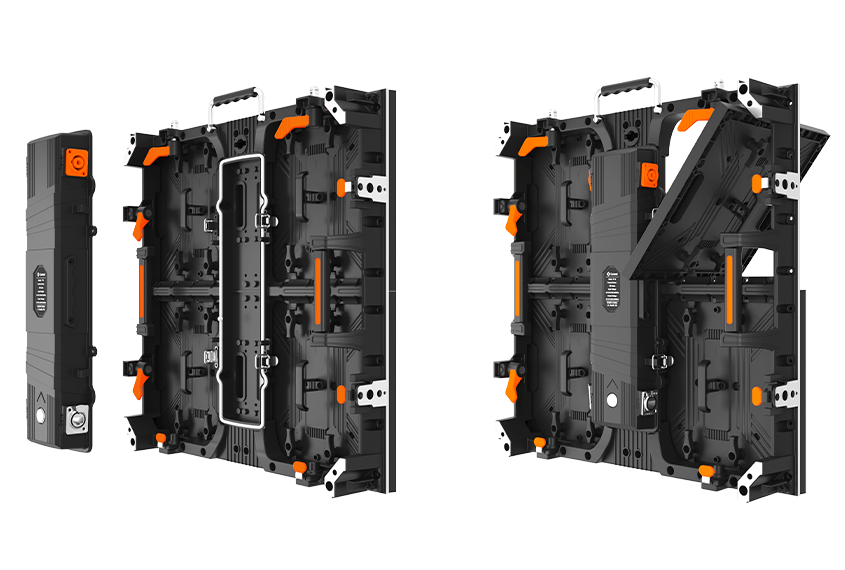

A modular cabinet design makes maintenance quick and straightforward. Front and rear service access, interchangeable modules, and a removable power box help minimize downtime, simplify repairs, and keep your video wall performing at its best.

Power Share Technology (PST)

Power Share Technology helps keep your LED wall running even if a single power supply fails. Instead of a dark panel interrupting your display, neighboring cabinets automatically share power, allowing the screen to continue operating until maintenance can be performed.

For churches, conferences, and live events, this added layer of redundancy provides greater reliability when every presentation and every service matters.



Creative Columns

Create stunning 360° digital columns that transform ordinary structural poles into eye-catching display features. Each XS-C panel supports up to 45° of curvature, allowing two panels to form a seamless 90° corner or eight panels to create a complete 360° column with an approximate 1.27 m (50”) diameter.

From church lobbies and sanctuaries to retail spaces and convention centers, digital columns turn unused structural elements into engaging visual experiences.

Smooth Curved Displays

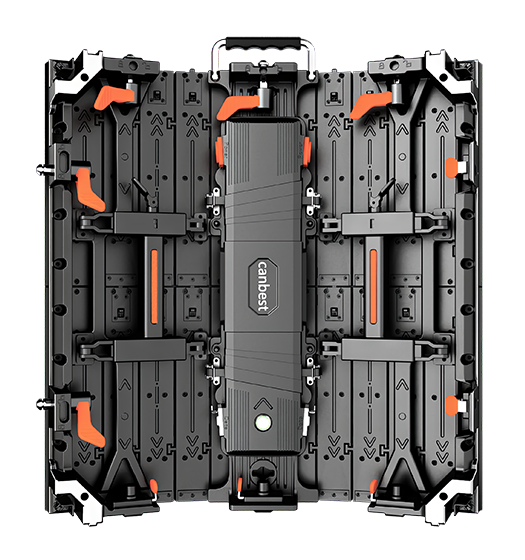

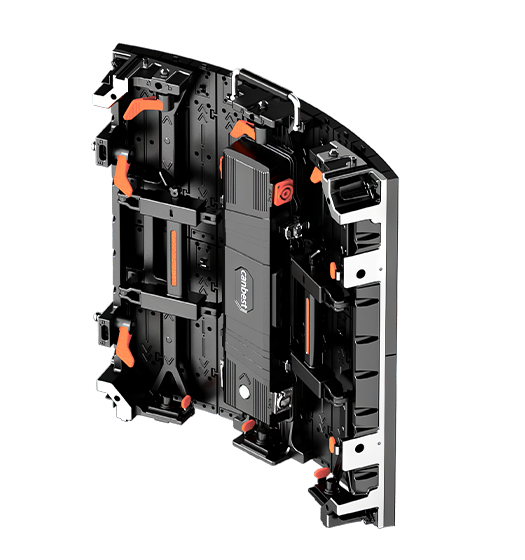

The XS-C Series is engineered for true curved installations, with each panel adjustable from -45° convex to +45° concave. That means just two panels can form a seamless 90° corner, while additional panels can create smooth waves, sweeping arcs, circles, and custom architectural designs.

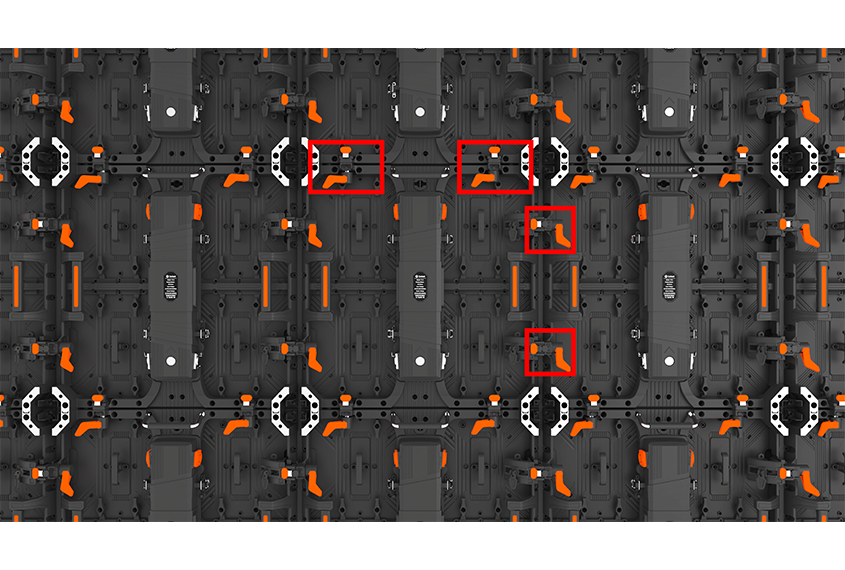

A precision curve-locking system keeps every cabinet securely aligned in both flat and curved configurations, delivering exceptional accuracy and a clean, continuous visual appearance.

PIXEL PITCH: 1.9mm

PIXEL CONFIGURATION: 3 in 1 SMD/GOB

MODULE PIXEL (H x W): 128x128dots

CABINET PIXEL (H X W): 256x256dots

BRIGHTNESS: 800nits

REFRESH RATE: 3840Hz/7680Hz
CABINET SIZE: 500x500mm (19.69x19.69inch)

CABINET WEIGHT: 8Kgs (17.6 lbs)

ACCESSIBILITY: Front Access

IP RATING: IP30

CONTRAST RATIO: 5000:1

WORKING TEMPERATURE: -20℃~+40℃ (-4°F to 104°F)
PIXEL PITCH: 2.604mm

PIXEL CONFIGURATION: 3 in 1 SMD

MODULE PIXEL (H x W): 96x96dots

CABINET PIXEL: ( H X W): 192x192dots | 192x384dots

BRIGHTNESS: 1000nits

REFRESH RATE: 7680Hz
CABINET SIZE Single: 500x500mm (19.69x19.69inch)

CABINET SIZE Double: 500x1000mm (19.69x39.38inch)

CABINET WEIGHT: 7.1Kgs (15.65 lbs) | 13Kgs (28.66 lbs)

ACCESSIBILITY: Front Access

IP RATING: IP30

CONTRAST RATIO: 5000:1

WORKING TEMPERATURE: -20℃~+40℃ (-4°F to 104°F)

7680hz

REFRESH RATE

1000nits

BRIGHTNESS

±45°

CURVE ANGLE

140° / 140°

VIEWING ANGLE

5000:1

CONTRAST RATIO

SEE IT IN ACTION

XS & Curved Projects

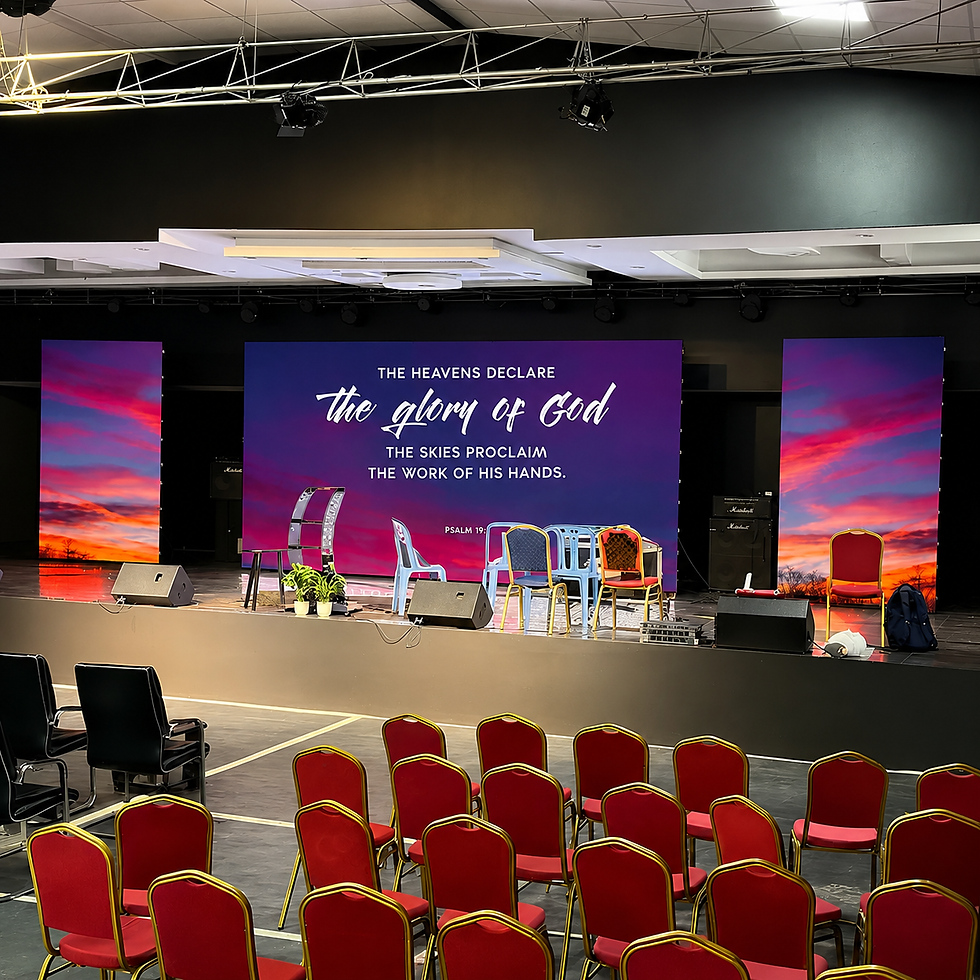

XS Series LED Video Wall setup on a church stage with multiple screens

XS P2.6 Indoor

Center - 5m x 2.5m (16.4' x 8.2')
Sides - 1.5m x 2.5m (4.9' x 8.2')

FIW Curved Panel P1.9

7.4m x 3.84m (23.09' x 12.59')

FIW Series LED Video Wall mounted to a wall with a curve and bold image on the screen

XS MODULAR SERIES

One panel. Endless possibilities. The modular workhorse of our lineup, the XS Series builds seamless LED walls that can be ground stacked, flown, expanded, and reconfigured whenever your needs change.

Go Modular

FIW FLUSH MOUNT SERIES

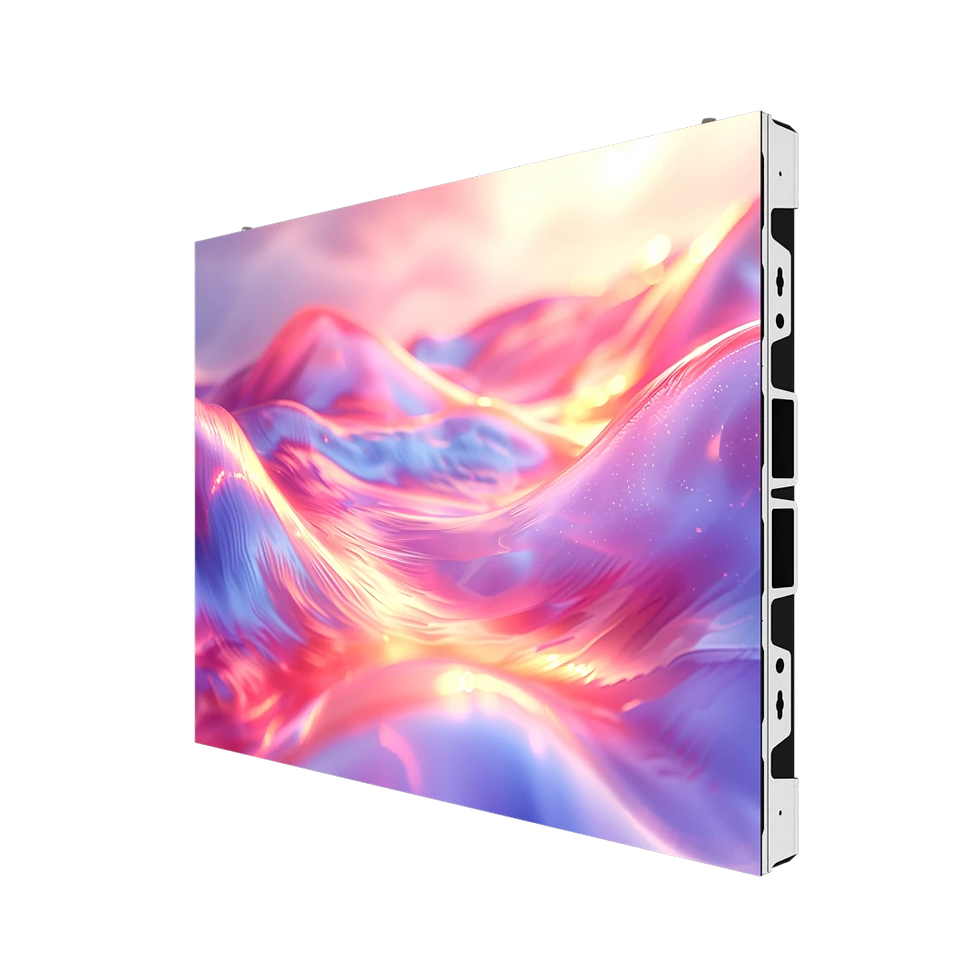

Need a sleek, wall mounted installation? The FIW Series mounts close to the wall with full front-service access, making it the ideal choice for sanctuaries, conference rooms, lobbies, and digital signage.

Go Flush

CJ PRO V2 All-In-One Units

Roll it in, unfold it, and start presenting. The CJ Pro V2 is a portable all-in-one LED display designed for churches, events, trade shows, and lobbies where fast setup and mobility matter.

Go Portable
